Mid-Span Height

Follow the steps below:

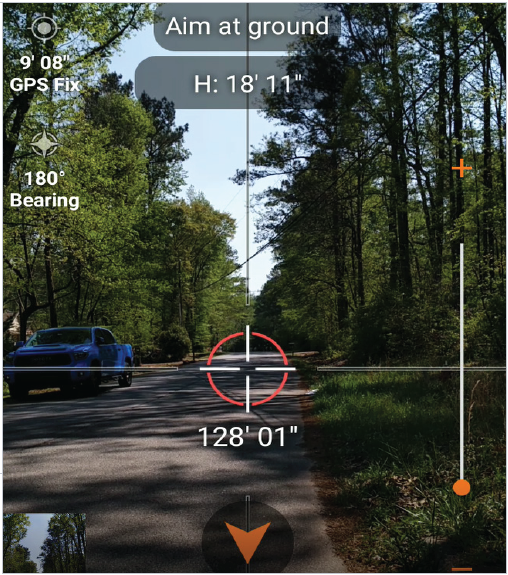

1. Aim at the wire. Zoom in to ensure you are hitting the correct wire and confirm that the distance on screen is reasonable.




2. Use the orange guide arrows to locate the position directly below the wire.
3. When the arrows disappear and both the crosshair and the height measurement area turn green, tap the Capture button.




4. The results screen shows the height of the wire and a photo with the crosshair.




5. The results screen shows the height of the wire and a photo with the crosshair.
   • Tapping the Map tab displays the collections for this Job on a map.
   • Tapping the “Add” button will take you to the Form screen to add another collection.
   • Tapping on the location balloon will take you to that collection.
