The basics for setting up your IKE Tripod in the field.

The IKE Tripod has a low magnetic signature and is designed specifically for use with the IKE device to produce accurate measurements.

Note: We do not recommend using your IKE device with other tripods as the accuracy of your measurements may be affected.

1. Prepare

   • Remove the tripod from its bag. Open up the legs of the tripod. Unclip the tripod leg locks and extend the legs to the required height. Clip back to secure the legs. Lower the main lever to a horizontal position.




   • Squeeze the small lever and turn it to release the tripod plate.




   • Attach the tripod plate to the base of the IKE device ensuring it is positioned correctly as shown below. Tighten the screw until it is secure.





2. Mount

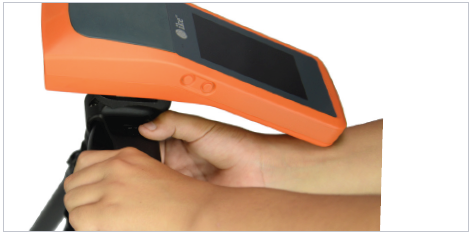

   • Hold the lever outwards and clip the tripod plate on the back of the IKE device to the tripod.




   • Lower the IKE unit into position and then turn the lever fully to lock the unit into place.


   • Ensure that the IKE unit is securely attached.



3. Adjust

   • You can fine tune the height of the unit. Turn the adjustment ring counterclockwise to loosen it and lift the center pole. Turn the adjustment ring clockwise to tighten into place.




   • To adjust the position of the IKE device, with one hand hold the unit, and with your other hand squeeze the main lever and move to adjust.




   • For span and pole height measuring, you can further tighten the movement of the lever so that the ball joint remains locked yet the pitch mechanism is still movable. To do this, while pressing the main lever with one hand, use your other hand to turn the friction dial and adjust the tension. Test the tension of the movement between adjustments.

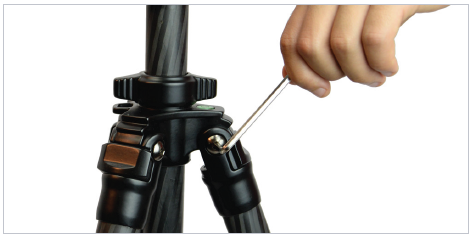

   • The leg hinges may loosen over time. If this happens, use the Allen key provided to tighten the screws.



A note on the Tripod Leg Strap:

• The leg strap allows you to secure the legs closed when not in use and also provides the eyelet for
  attaching the carry strap.
• Attach the leg strap just under the padding of the tripod leg. Wrap the strap around the leg and thread it through the buckle. Secure it in place with the velcro. The carry strap can then be attached to the leg strap eyelet and the eyelet on the tripod head.
