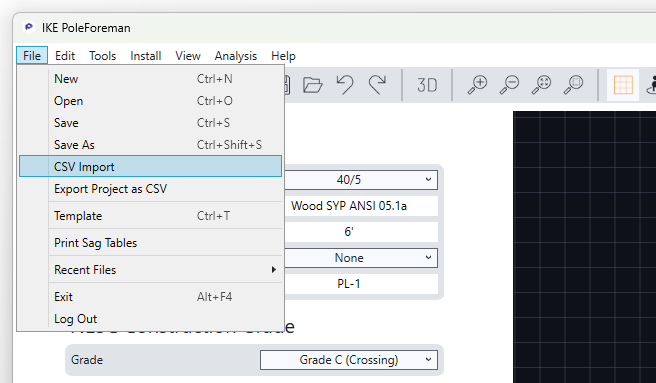

The CSV Import feature in IKE PoleForeman allows users to quickly populate pole data into a project without manual entry. This function is designed to help project managers and engineers import existing pole records, reducing setup time and improving data consistency across projects.

The imported file can include the following data fields:

• Pole Label (ID)
• Pole Latitude and Longitude
• Pole Elevation
• Pole Length and Class Anchors (including lead length and direction)
• Pole Order (to define structure sequence in the project)
• Groundline Topography

When this information is included, IKE PoleForeman will automatically generate the poles and anchors within the 2D canvas based on the provided coordinates and parameters.

A sample CSV template showing all supported fields and their format is available for download at the attachment link below.
